Figma Document Loader

Figma Node

Figma is a collaborative web application for interface design. This module provides functionality to load and process content from Figma files, including text, components, and metadata.

This module provides a sophisticated Figma document loader that can: - Load content from specific Figma files - Extract text from selected nodes - Process content recursively - Handle authentication with Figma API - Process content with text splitters - Customize metadata extraction

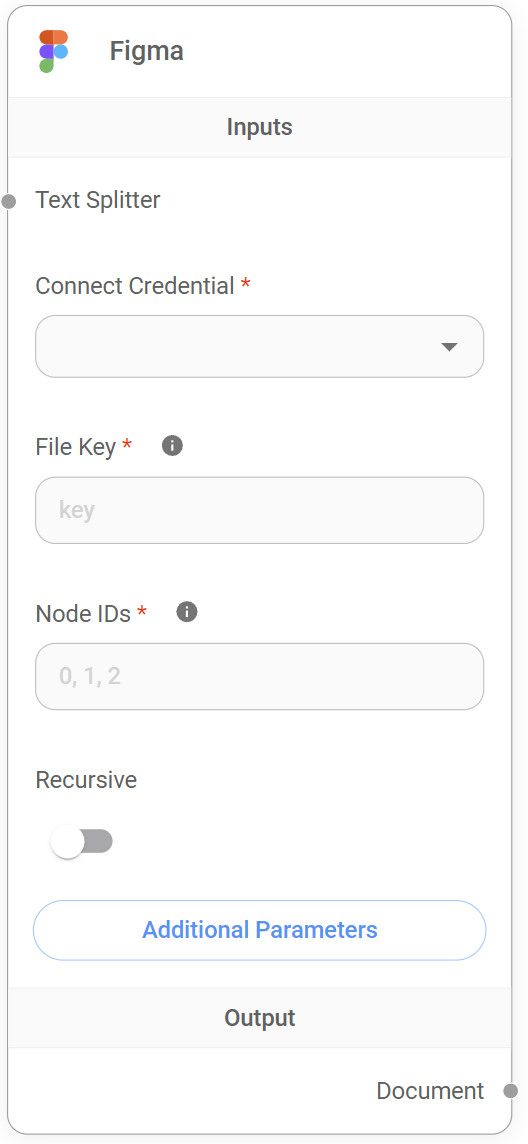

Inputs

Required Parameters

  • File Key: The unique identifier for the Figma file (from file URL)
  • Node IDs: Comma-separated list of node identifiers to extract
  • Connect Credential: Figma API credentials (access token)

Optional Parameters

  • Recursive: Whether to process nodes recursively
  • Text Splitter: A text splitter to process the extracted content
  • Additional Metadata: JSON object with additional metadata
  • Omit Metadata Keys: Comma-separated list of metadata keys to omit

Outputs

  • Document: Array of document objects containing metadata and pageContent
  • Text: Concatenated string from pageContent of documents

Features

  • API-based content extraction
  • Node-level content selection
  • Recursive processing
  • Text splitting support
  • Metadata customization
  • Error handling
  • Authentication management

File Key Format

The file key can be found in the Figma file URL:

https://www.figma.com/file/:key/:title
Example: In https://www.figma.com/file/12345/Website, the file key is 12345

Node IDs

To get Node IDs: 1. Install the Node Inspector plugin in Figma 2. Select the desired elements 3. Copy the Node IDs from the inspector 4. Use comma-separated format: "0, 1, 2"

Notes

  • Requires valid Figma access token
  • Node IDs must be valid for the file
  • Supports recursive content extraction
  • Can process multiple nodes at once
  • Handles API rate limits and errors
  • Preserves node hierarchy in metadata
  • Supports custom metadata addition
