Microsoft Excel Document Loader

Microsoft Excel is a spreadsheet program that features calculation tools, pivot tables, and a macro programming language. This module provides functionality to load and process Excel files using SheetJS.

This module provides a sophisticated Excel document loader that can: - Load multiple Excel file formats - Process multiple worksheets - Convert rows to structured documents - Handle various data types - Preserve cell formatting - Extract metadata per row - Support type inference

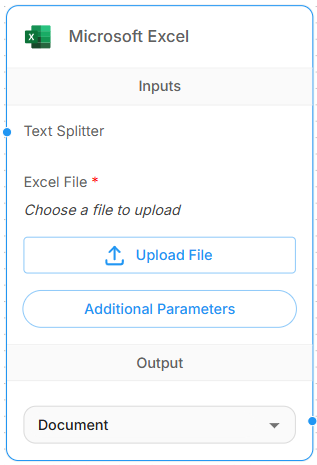

Inputs

Required Parameters

  • Excel File: The Excel file(s) to process (.xls, .xlsx, .xlsm, .xlsb)

Optional Parameters

  • Text Splitter: A text splitter to process the extracted content
  • Additional Metadata: JSON object with additional metadata
  • Omit Metadata Keys: Comma-separated list of metadata keys to omit

Outputs

  • Document: Array of document objects containing metadata and pageContent
  • Text: Concatenated string from pageContent of documents

Features

  • Multiple format support
  • Multi-sheet processing
  • Data type preservation
  • Metadata extraction
  • Type inference
  • Error handling
  • Memory-efficient processing

Supported Formats

  • Excel Binary (.xls)
  • Excel Workbook (.xlsx)
  • Excel Macro-Enabled (.xlsm)
  • Excel Binary Workbook (.xlsb)

Data Type Handling

Supported Types

  • Text (string)
  • Numbers (number)
  • Dates (date)
  • Booleans (boolean)
  • Formulas (calculated values)
  • Empty cells (null)

Document Structure

Each document contains: - pageContent: Formatted row content as key-value pairs - metadata: - worksheet: Sheet name - rowNum: Row index - Original column values - Additional custom metadata

Row Processing

Each row is converted to a document with: - Key-value pairs for each cell - Preserved column headers - Type information - Row position

Metadata Attributes

Default attributes include: - worksheet: Sheet or Worksheet Name (string) - rowNum: Row index (number) - Dynamic attributes based on column headers

Notes

  • Uses SheetJS for parsing
  • Preserves data types
  • Handles multiple sheets
  • Infers column types
  • Memory-efficient processing
  • Error handling for invalid files
  • Flexible output formats
  • Column type inference
